INTEGRATED DMX WORKSTATION — BUILT FOR PRODUCTION

PANTHER

Eight isolated DMX universes, built into the machine. Panther Manager handles network discovery, patch, RDM, and failsafe configuration — the infrastructure layer that runs underneath every lighting application you already use.

$6,500.00 FREE US SHIPPING — LEAD TIME 2–4 WEEKS
BUY NOW → LEARN MORE ↓
Schools, rental houses & multi-unit orders — contact us

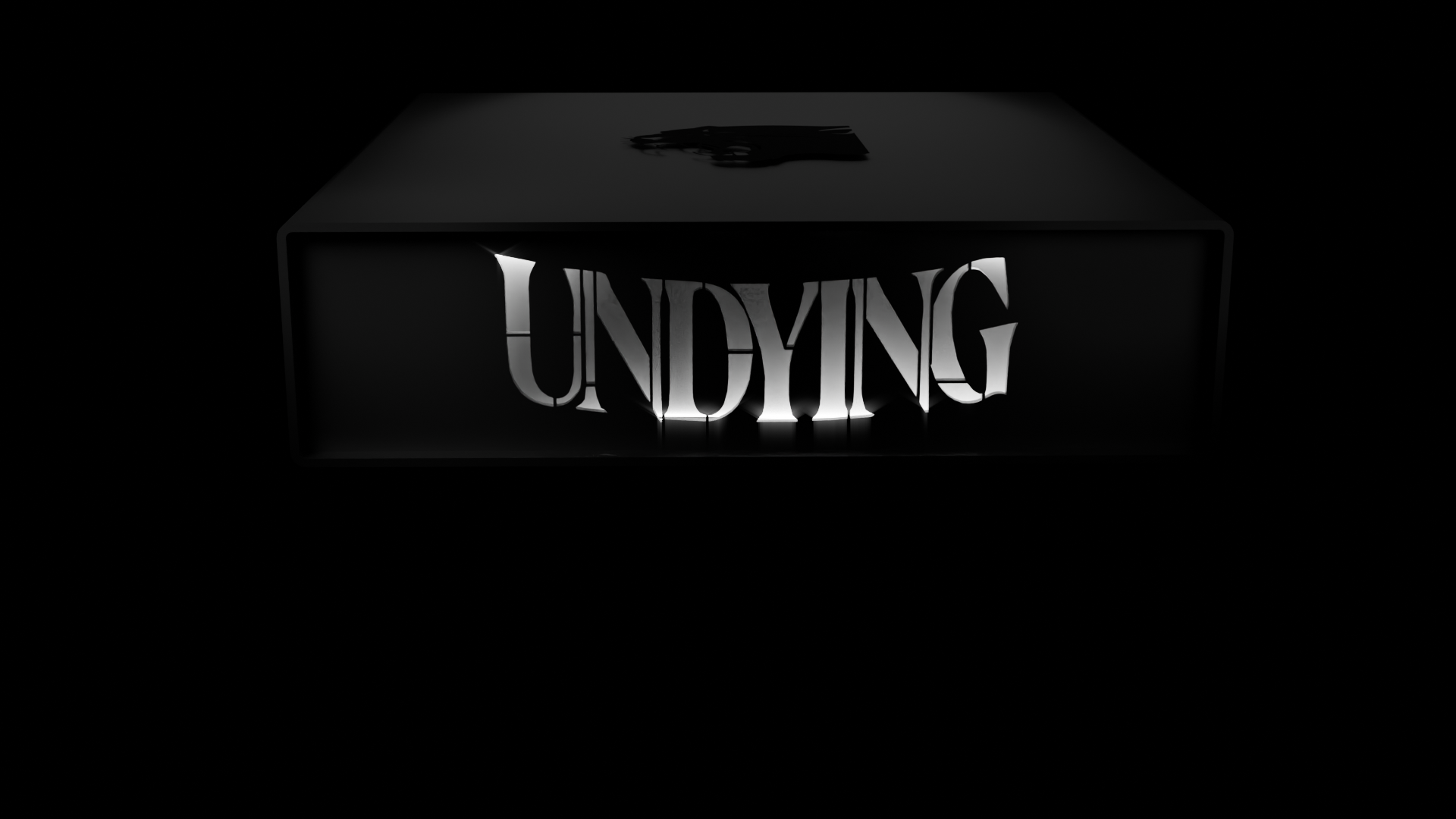

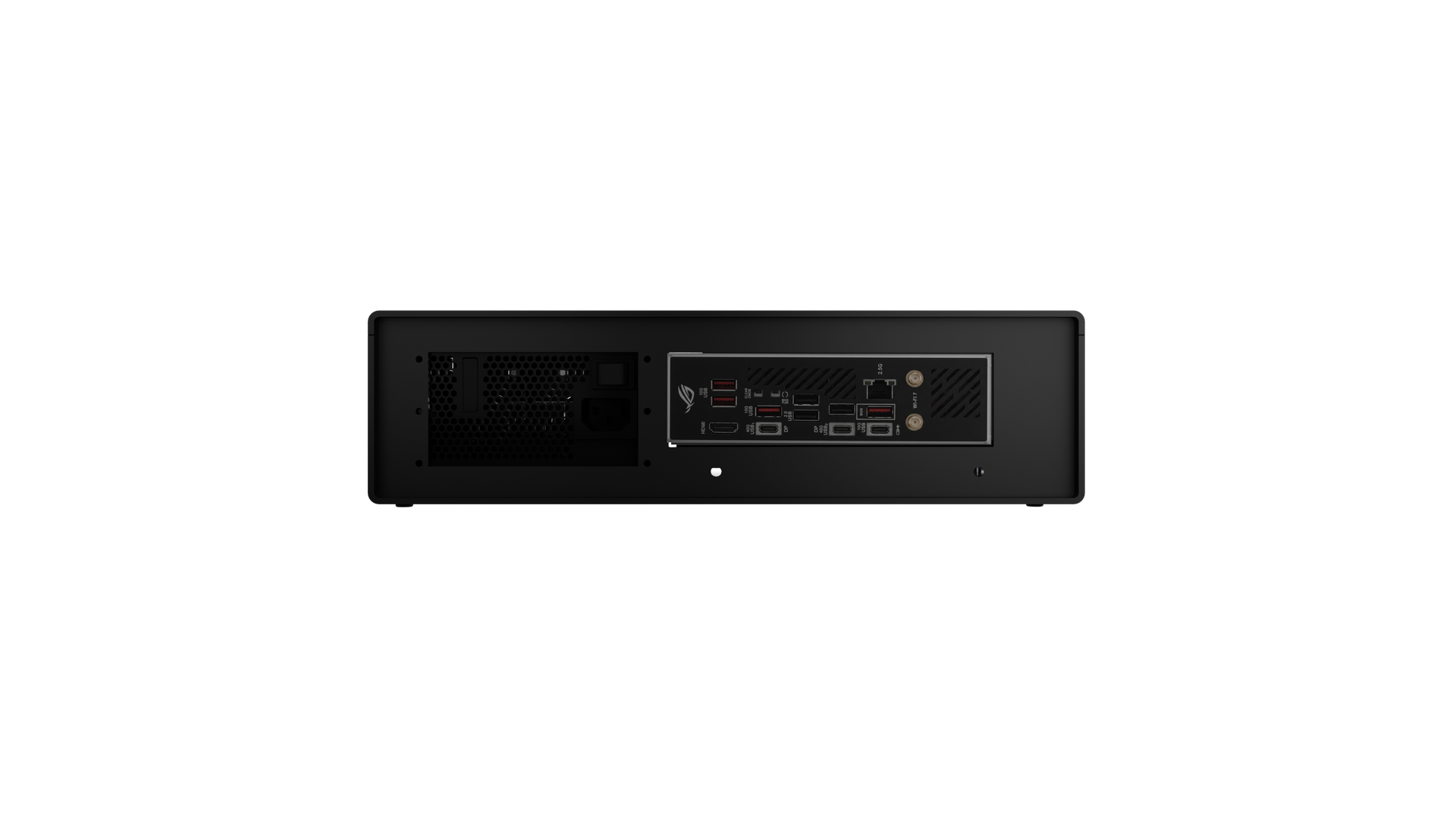

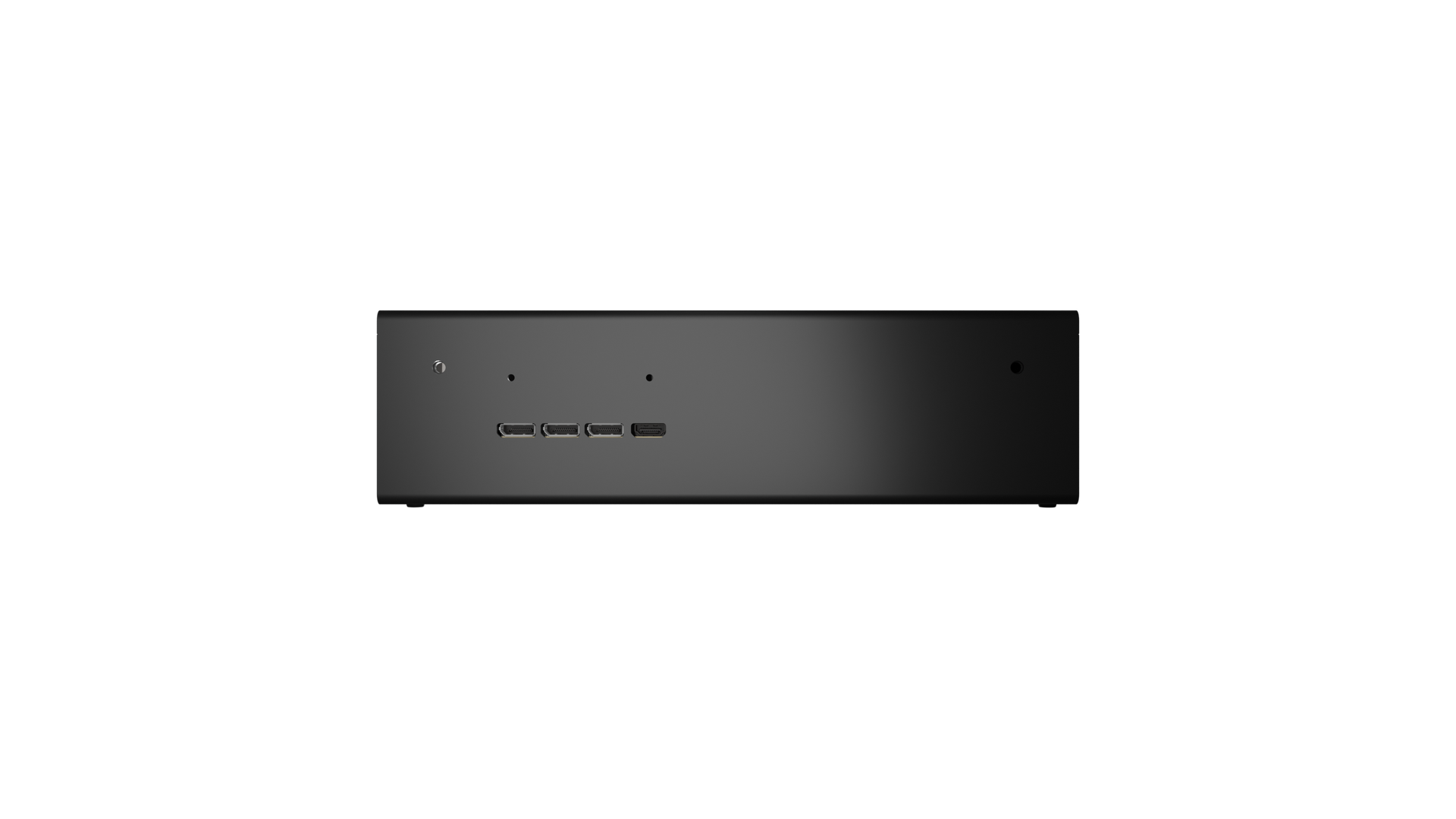

Panther — front view Panther — side view Panther — rear angle
DRAG TO ROTATE
LOCKED.
One button. Panther Manager sweeps every universe, checks every node, reads every RDM fixture, and verifies your failsafes are armed. Pass it and Panther locks — timestamp displayed. You're good. Stop second-guessing and go do the show.
SEE PANTHER MANAGER →
LIGHTS STAY ON.
The DMX board runs its own processor on isolated power. If Windows crashes, the board holds last look. Hardware watchdog recovery in under 500ms. Galvanic isolation per universe. Built to outlast the OS.
SEE FAILSAFE SPECS →
PATCH ONCE.
Import your MVR from Vectorworks. Panther Manager reads fixture positions, universe assignments, and suggests routing based on where your nodes are. Export to MA, ETC, Chamsys, or any sACN app. One patch, every platform.
SEE COMPATIBILITY →
SPECIFICATIONS
DMX BOARD
Output 8 universes of DMX512
Connectors 8× XLR 5-pin female
Protocols sACN (E1.31), Art-Net 4
Isolation Per-universe galvanic
Failsafe Hold last look / fade / preset (per universe)
RDM Bidirectional
Host Interface Standard network adapter — no custom drivers
Board Power Independent from host — survives OS crash
Board Latency <1ms
NETWORKING
NIC 2.5GbE (Intel) — Static 10.0.0.1/24, pre-configured
Isolation Windows firewall — sACN/Art-Net network isolated
Node Discovery Automatic via Panther Manager
Protocols sACN (E1.31), Art-Net 4
PERFORMANCE
End-to-End Latency ~25–35ms
Board Latency <1ms
Watchdog Recovery <500ms from host hang
WORKSTATION
Motherboard ASUS ROG Strix X870-I Gaming WiFi — Mini-ITX, AM5, WiFi 7
Processor AMD Ryzen 7 9700X — 8-core / 16-thread, 5.5GHz boost, Zen 5
Memory 64GB DDR5
Graphics MSI GeForce RTX 5070 12GB GDDR7
Storage WD Black SN850X 2TB NVMe — 7,300 MB/s read
Power Supply Corsair SF750 — 750W SFX, 80+ Platinum, fully modular
Operating System Windows — optimized, updates locked during shows
PHYSICAL
Form Factor Horizontal desktop — Mini-ITX
Dimensions 320 × 305 × 81mm (12.6" × 12.0" × 3.2")
Enclosure Dark grey anodized aluminum

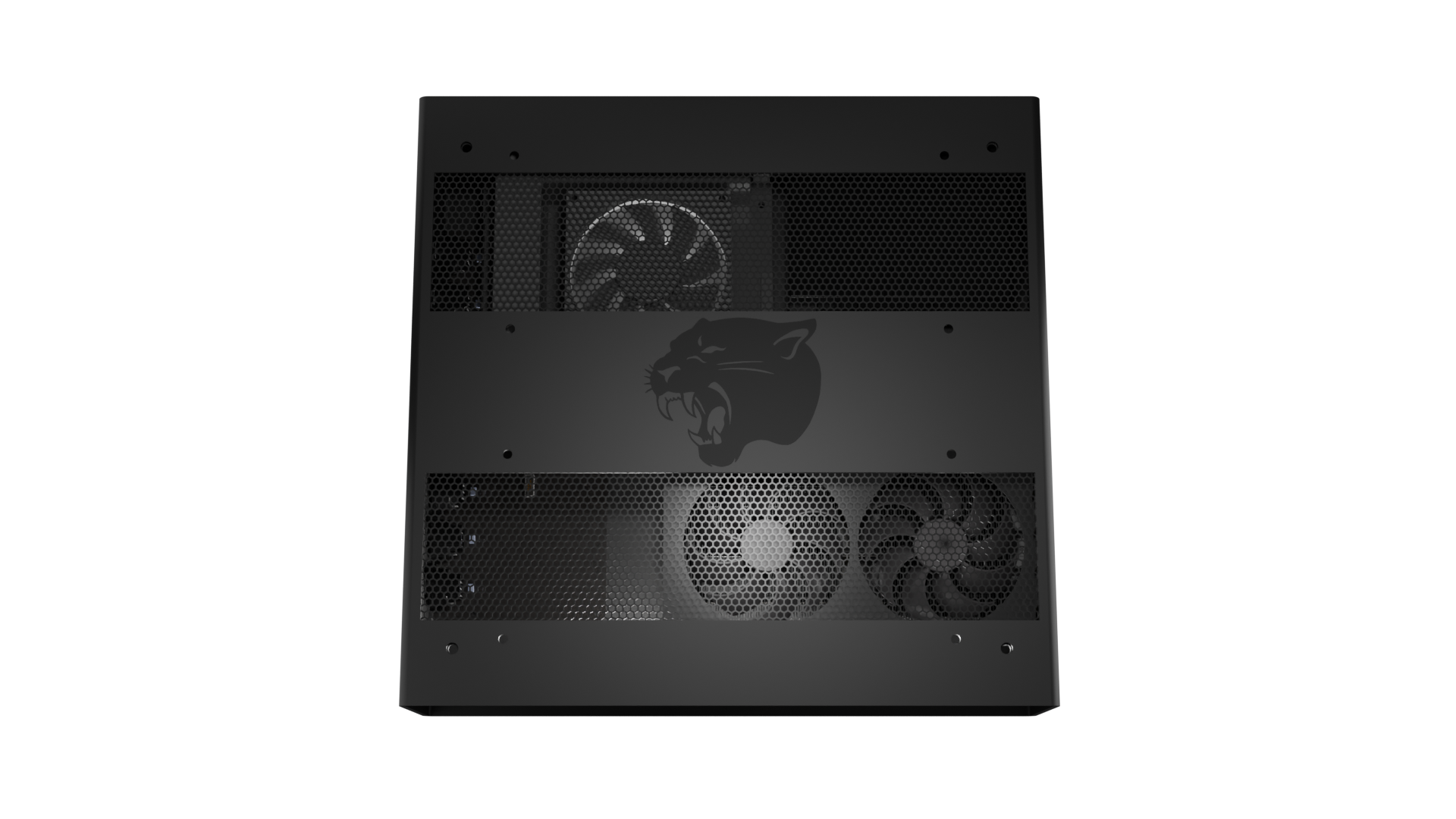

Top Panel Laser-etched panther graphic
Front Panel Backlit Undying wordmark (aluminum cutout)

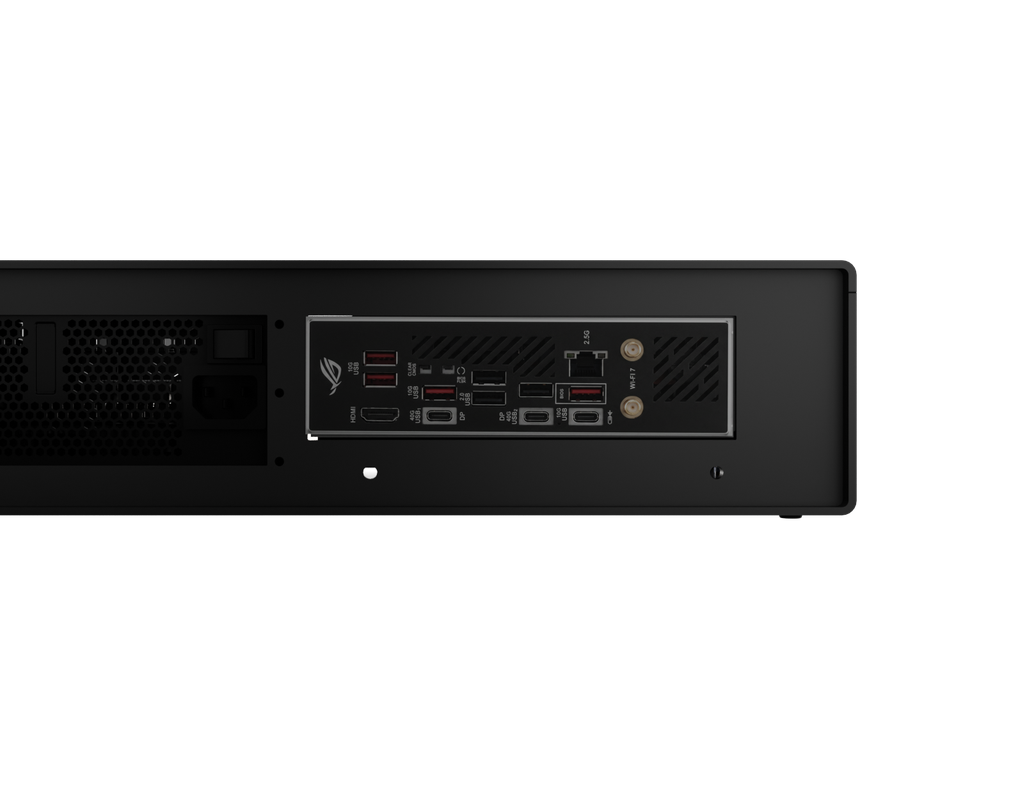

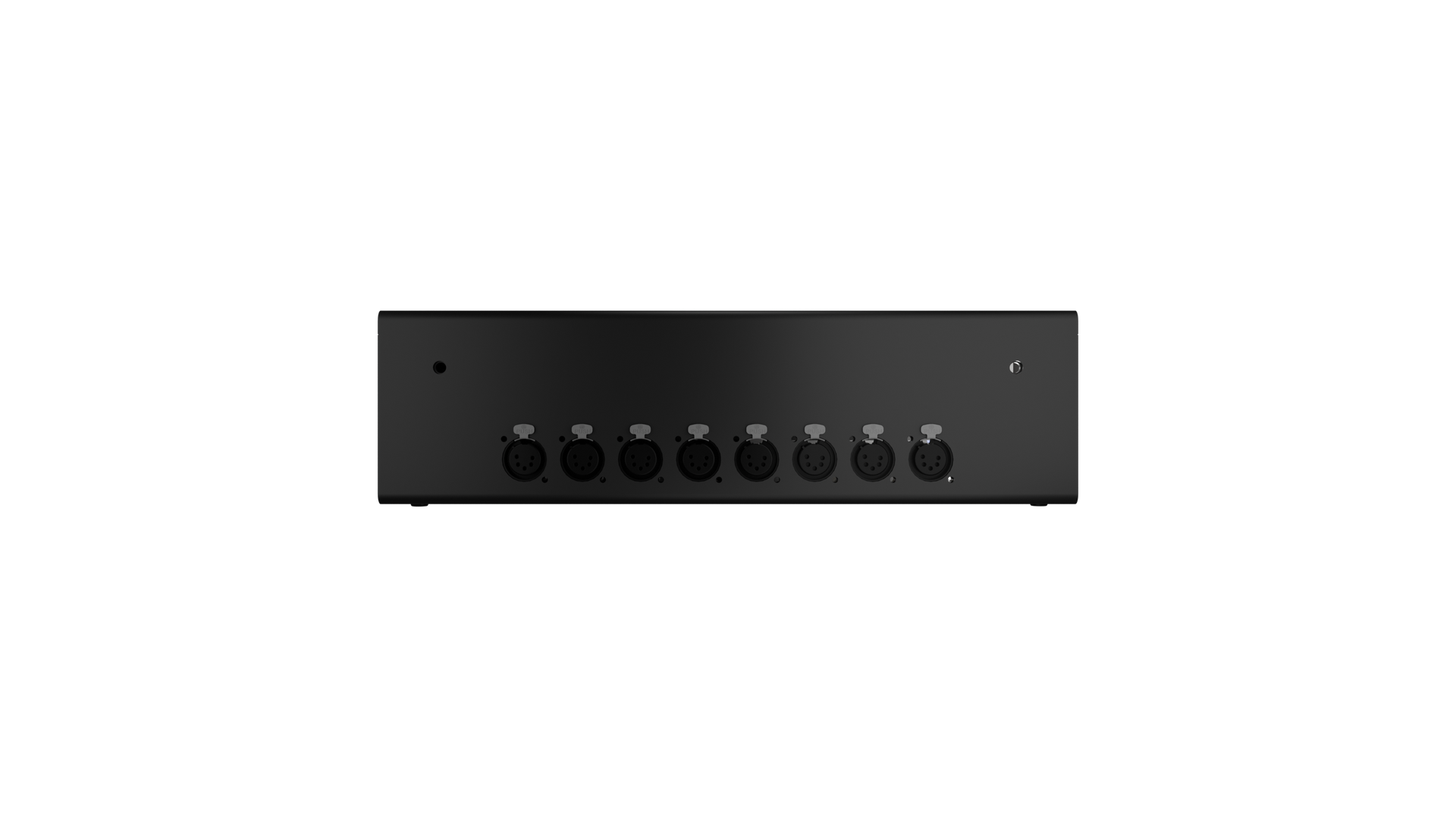

Rear Panel 8× XLR DMX, dual Ethernet, full I/O, power inlet
SOFTWARE & COMPATIBILITY
Compatible Applications Any app supporting sACN or Art-Net
Tested With Capture, QLab, Undead Control
Included Software Undead Control, Panther Manager
Driver Requirement None
PANTHER
8 isolated DMX universes, built in — active on arrival
sACN · Art-Net 4 · RDM — bring your own software
AMD Ryzen 7 9700X · RTX 5070 · 64GB DDR5 · 2TB NVMe
Panther Manager included — patch, RDM, health monitoring, failsafe config
LOCKED mode pre-show check — go into every show knowing you're good
$6,500.00 USD — FREE US SHIPPING — LEAD TIME 2–4 WEEKS
BUY NOW → REQUEST QUOTE →
Schools, rental houses & multi-unit orders — contact us
